AeroTech I59WN-P RMS-38/480 Reload Kit (1 Pack) - 09059P

  • Sale
  • Regular price $76.99
Shipping calculated at checkout.

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-38/480 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.

The I59WN-P is a Plugged motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system. This motor requires a Endburn-style Plugged Forward Closure (38EBFCPT).

This “boost-sustain” motor uses a combination of AeroTech’s Warp- 9™ and White Lightning™ propellants to produce a unique thrust curve with a brilliant white flame and a moderate amount of smoke. The “boost” portion of the thrust curve is Warp- 9™ propellant, followed by a longer “sustain” phase of White Lightning™ propellant.

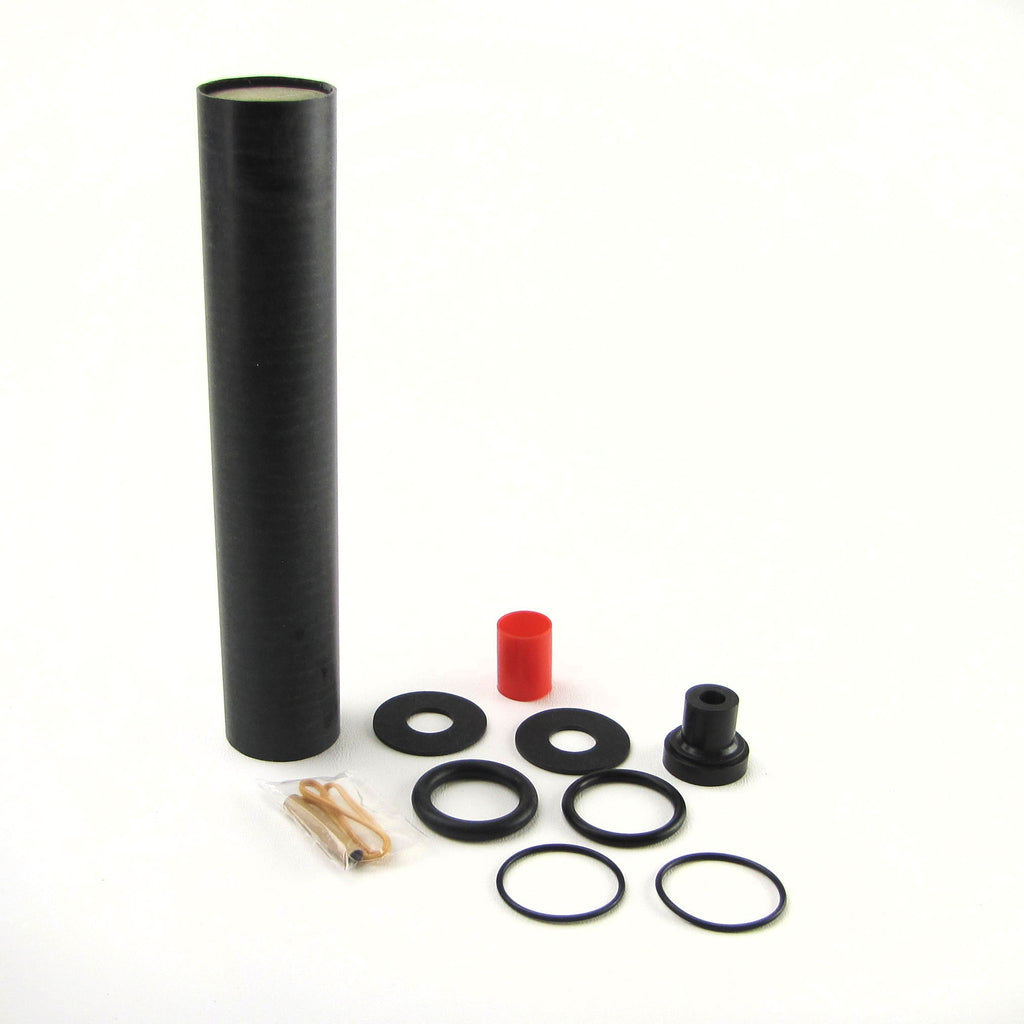

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 1 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 1 certification is received.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

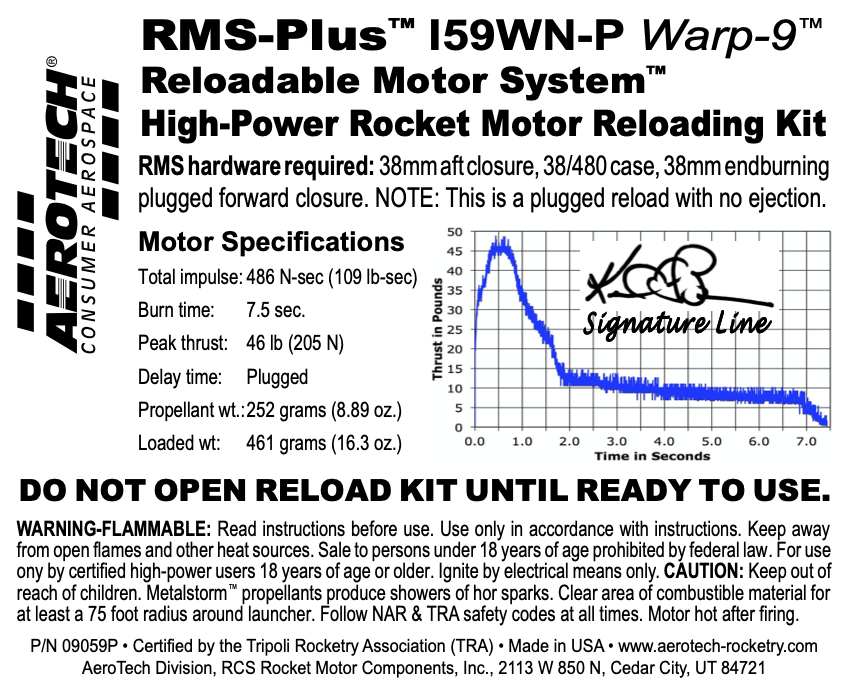

  • Specifications:

    Motor Diameter: 1.5 inches (38mm)

    Casing Length: 9.13 inches (232mm)

    Hardware Required: RMS-38/480

    Total Impulse: 486 N-sec

    Average Thrust: 59.0 newtons

    Peak Thrust: 172.9 N-sec

    Thrust Duration: 7.99 seconds

    Delay Time: Plugged

    Propellant Weight: 251.7 grams

    Motor Weight: 487 grams

    Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocketmotors. Instead, we recommend utilizing either the RockSim software available at or OpenRocket Simulator available at
