These high performance, composite propellant model rocket motors use the same family of solid propellant as NASA’s Space Shuttle Boosters, military missiles, sounding rockets, and NASA’s future SLS moon rocket. They utilize a patent pending high-strength polymer case and bulkhead, polymer nozzle and RCSs exclusive Black Max™ aerospace grade composite propellant formulation, which produces a visible black exhaust plume and a denser dark tracking smoke. Black Max™ motors provide a higher level of thrust than White Lightning™ motors of the same total impulse and are perfect for high lift-off acceleration.

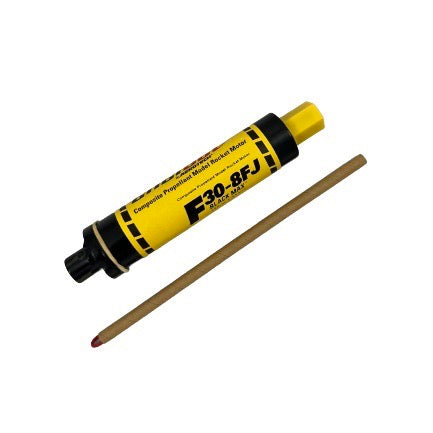

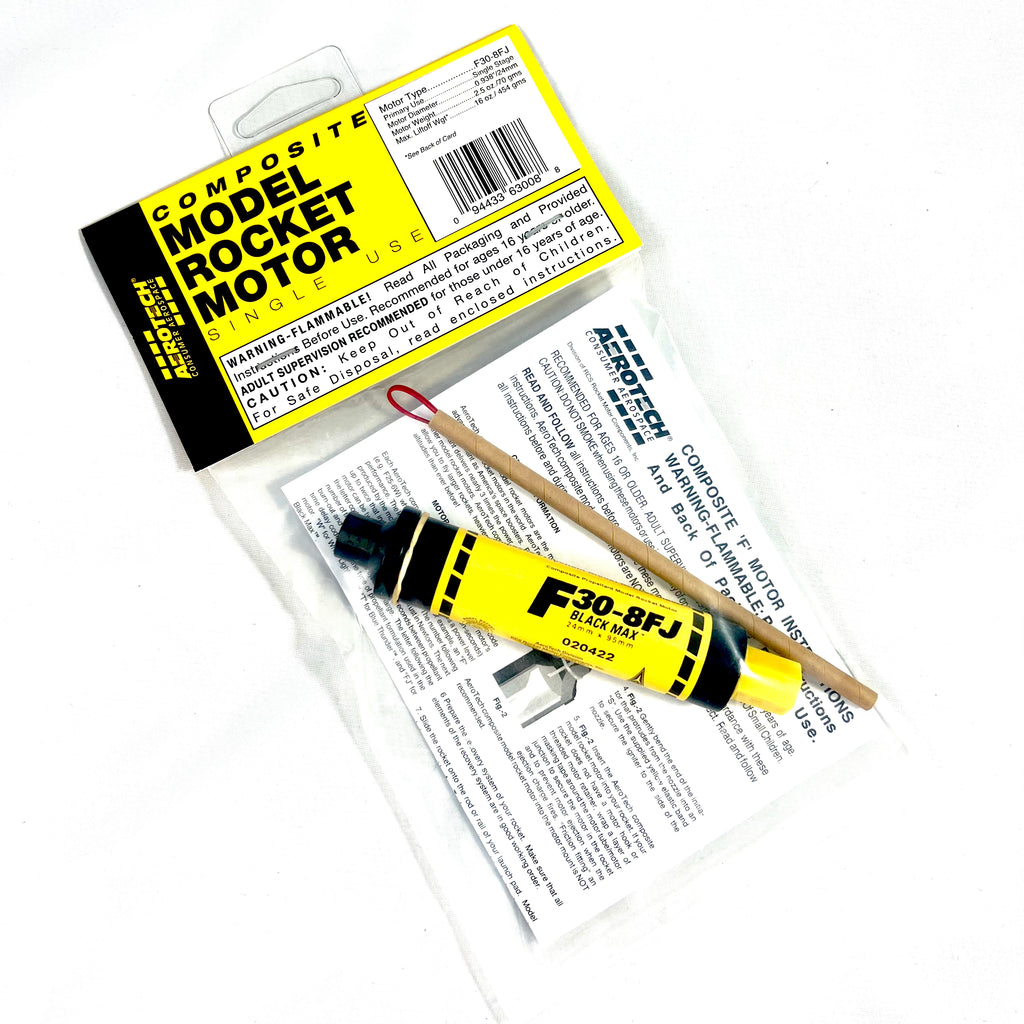

This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire™ Jr. Initiator. This AeroTech motor is U.S. mailable with no hazmat fee!
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
-

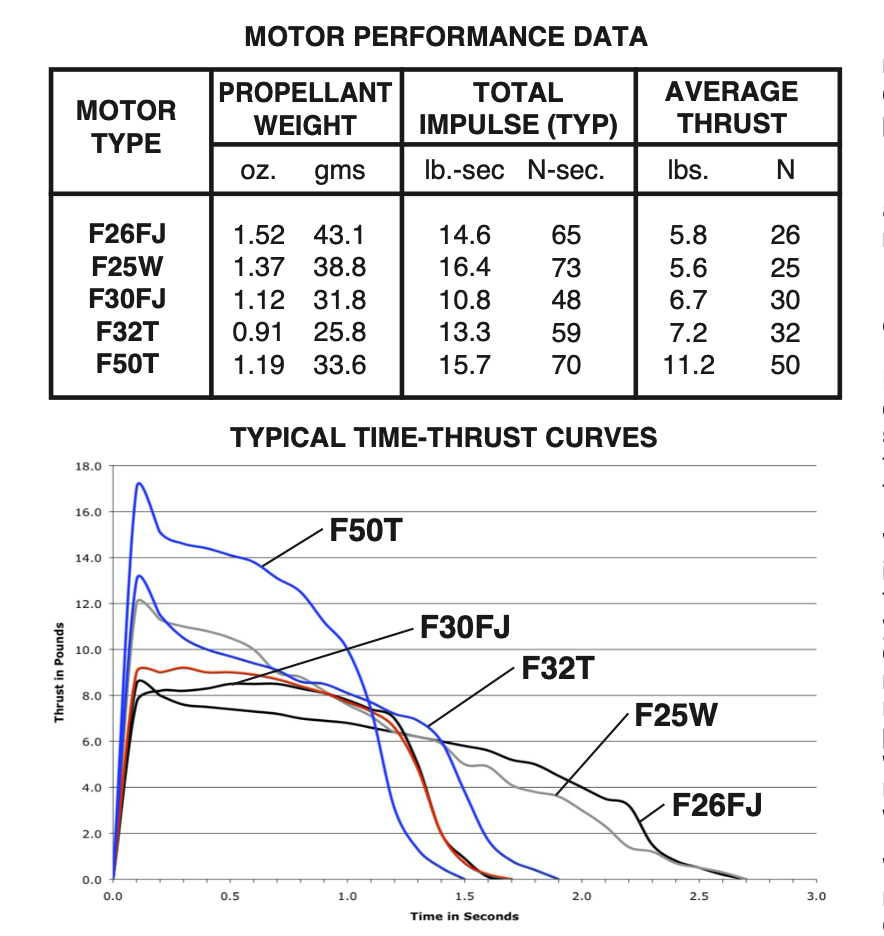

Specifications:
Motor Diameter: 0.938 inches (24mm)
Casing Length: 3.75 inches (95mm)
Total Impulse: 47 N-sec
Average Thrust: 30.4 newtons
Peak Thrust: 40.6 N-sec
Thrust Duration: 1.5 seconds
Delay Time: 8 seconds
Propellant Weight: 31 grams
Motor Weight: 70.3 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
