The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-54/426 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a 54mm small nozzle aft closure (54ACCSN) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 54mm Delay Drilling Tool (54RDDT), Not Included. The 54mm Delay Drilling Tool(54RDDT) is available in the AeroTech Accessories section of this website.
This RMS motor reload utilizes RCSs exclusive Mojave Green™ aerospace grade composite propellant formulation, which produces a brilliant green exhaust plume with a moderate amount of smoke. Mojave Green™ motors high density and specific impulse delivers a higher total impulse in each motor size than any other AeroTech propellant.
The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 1 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 1 certification is received.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).
-

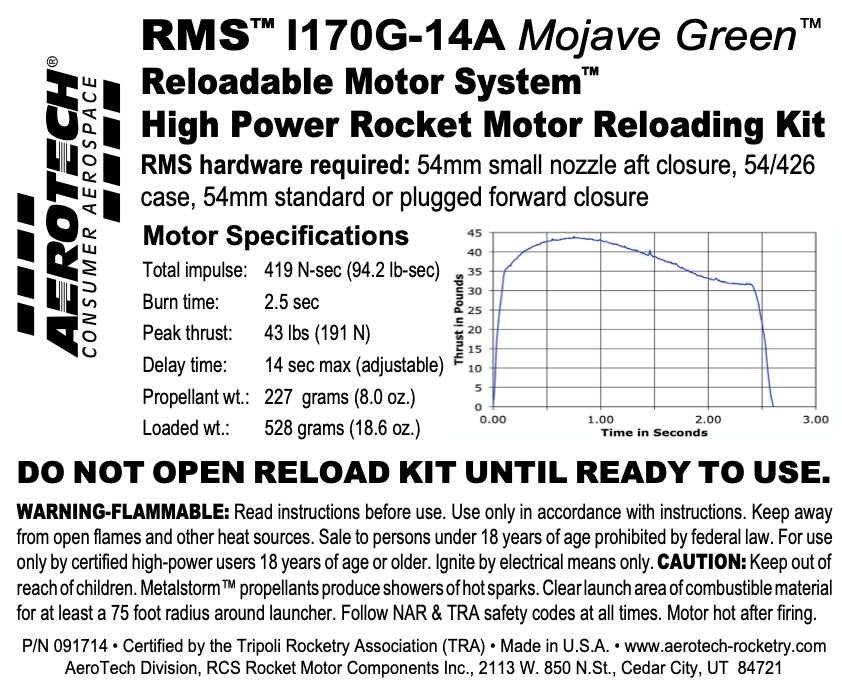

Specifications:
Motor Diameter: 2.125 inches (54mm)
Casing Length: 6.14 inches (156mm)
Hardware Required: RMS-54/426
Total Impulse: 418.5 N-sec
Average Thrust: 171.8 newtons
Peak Thrust: 207.4 N-sec
Thrust Duration: 2.4 seconds
Delay Time: adjustable up to 14 seconds
Propellant Weight: 227 grams
Motor Weight: 528 grams
Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
